Skywalking tracing

The Skywalking tracing sandbox demonstrates Envoy’s request tracing capabilities using Skywalking as the tracing provider.

In this example, 2 backend services are provided:

  • service-1

  • service-2

3 Envoy proxies are also provided to route requests to them:

Of these services, only the Envoy front-proxy service is exposed outside of the composition, on port 10000.

For service-1, requests are routed based on the request path trace/1, as follows:

User -> Envoy(envoy-front-proxy) -> Envoy(envoy-1) -> service-1

For service-2, requests are routed based on the request path trace/2 as follows:

User -> Envoy(envoy-front-proxy) -> Envoy(envoy-1) -> Envoy(envoy-2) -> service-2

All Envoy proxies are configured to collect request traces, as can be seen in their configurations, propagating the spans generated by the Skywalking tracer to a Skywalking OAP cluster.

Each span records the latency of upstream API calls as well as information needed to correlate the span with other related spans (e.g., the trace ID).

The Skywalking web UI for viewing the collected traces is available on port 8080.

Step 1: Build the sandbox

Change directory to examples/skywalking in the Envoy repository.

To build this sandbox example, and start the example services run the following commands:

$ pwd
$ docker compose pull
$ docker compose up --build -d
$ docker compose ps
Name                           Command                  State                          Ports
skywalking_elasticsearch_1       /bin/tini -- /usr/local/bi ... Up (healthy)   9200/tcp, 9300/tcp
skywalking_envoy-1_1             / /usr ... Up             10000/tcp
skywalking_envoy-2_1             / /usr ... Up             10000/tcp
skywalking_envoy-front-proxy_1   / /usr ... Up   >10000/tcp,:::10000->10000/tcp
skywalking_service-1_1           python3 /code/       Up (healthy)
skywalking_service-2_1           python3 /code/       Up (healthy)
skywalking_skywalking-oap_1      bash      Up (healthy)   11800/tcp, 1234/tcp, 12800/tcp
skywalking_skywalking-ui_1       bash      Up (healthy)>8080/tcp,:::8080->8080/tcp

Step 2: Make a request to service-1

Now send a request to service-1, by calling http://localhost:10000/trace/1.

This will be routed via 2 of the Envoy proxies:

  • front-proxy

  • envoy-1

$ curl localhost:10000/trace/1
Hello from behind Envoy (service 1)!

Step 3: Make a request to service-2

Now send a request to service-2, by calling http://localhost:10000/trace/2.

This will be routed via all 3 of the Envoy proxies:

  • front-proxy

  • envoy-1

  • envoy-2

$ curl localhost:10000/trace/2
Hello from behind Envoy (service 2)!

Step 4: View the traces in Skywalking UI

Point your browser to http://localhost:8080.

You should see the Skywalking dashboard.

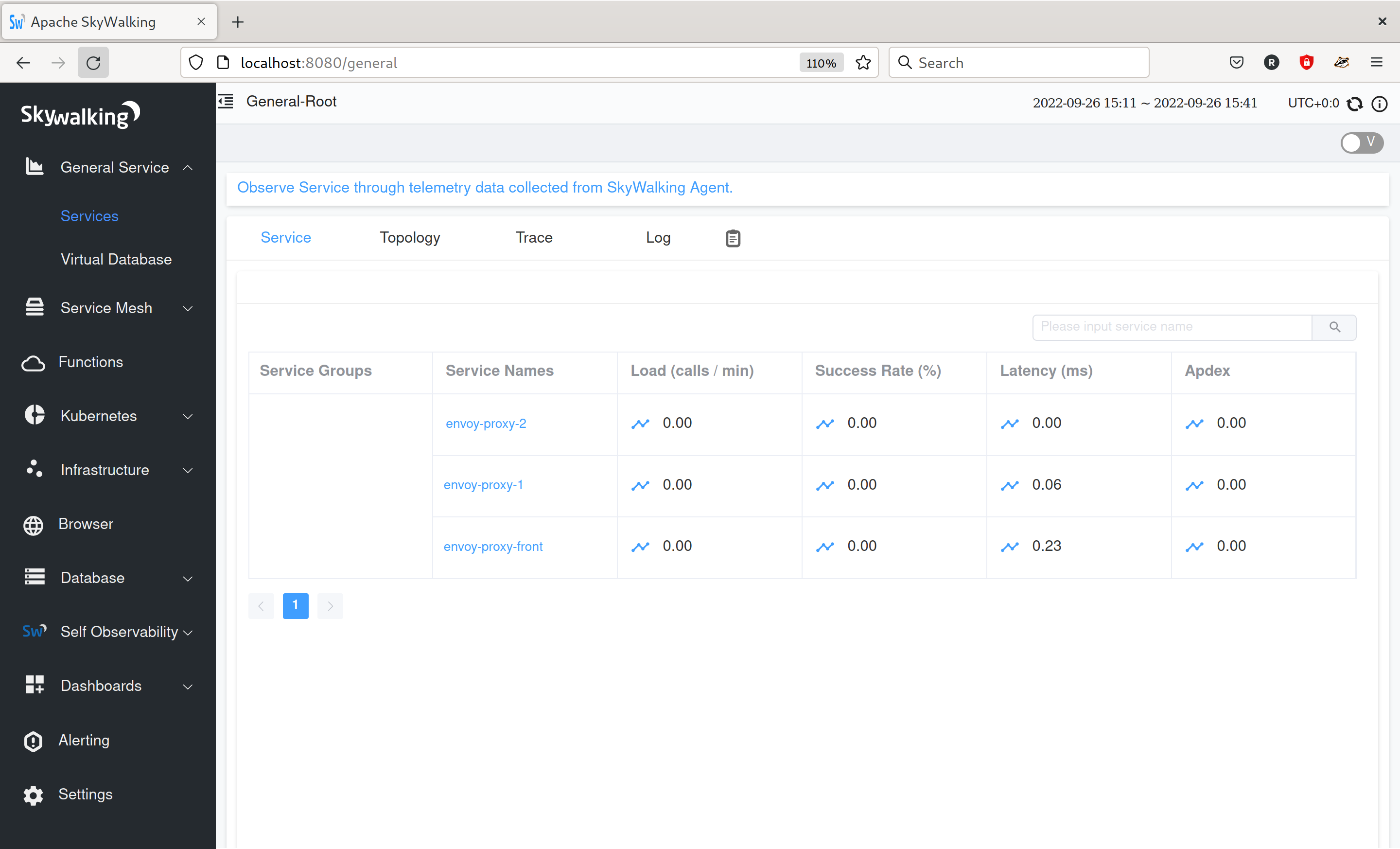

You may need to wait a moment for the traces to be added, but clicking on General Service > Services, you should see the Envoy services listed.

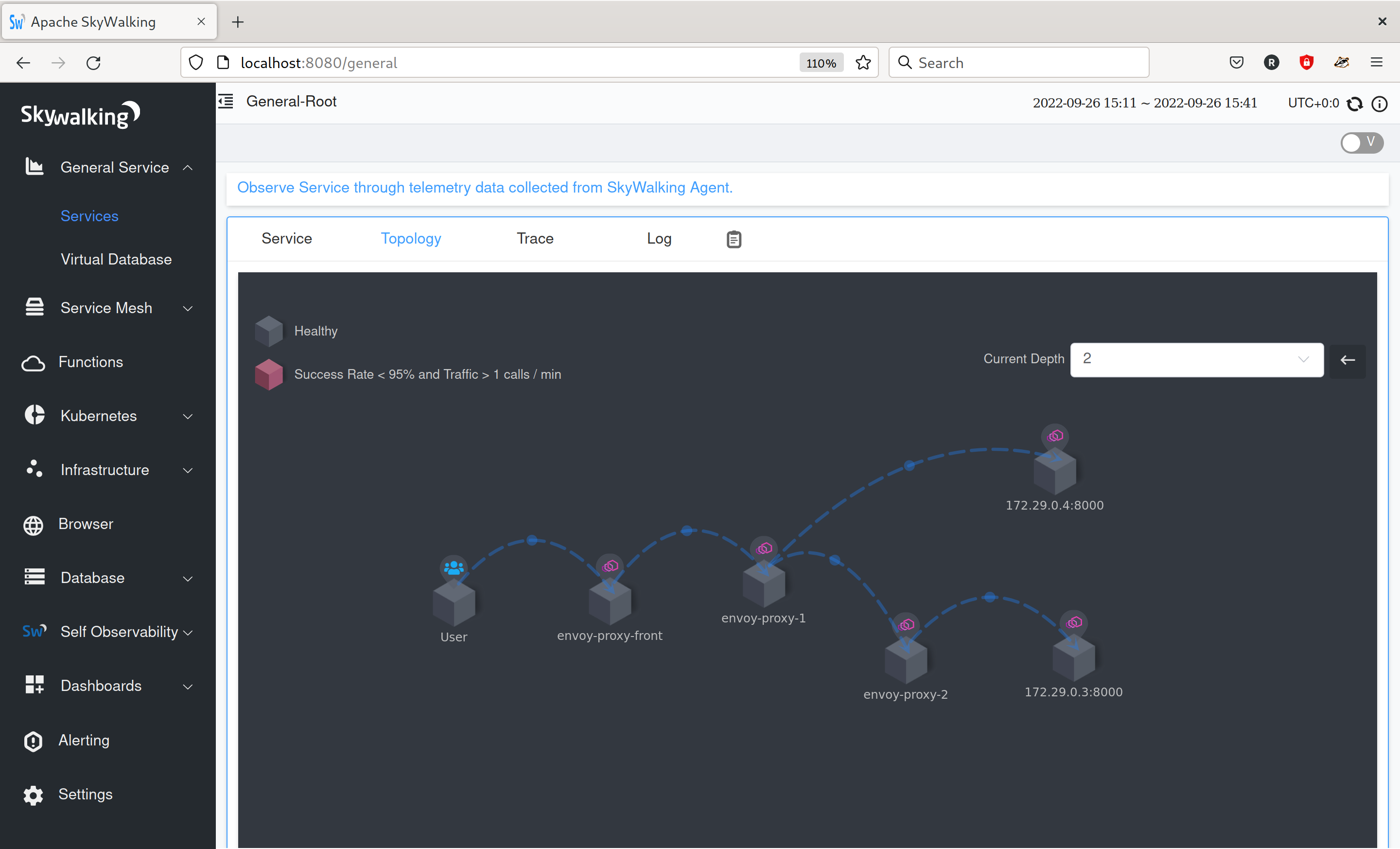

From here you can explore the metrics and views that skywalking offers, such as the Topology:

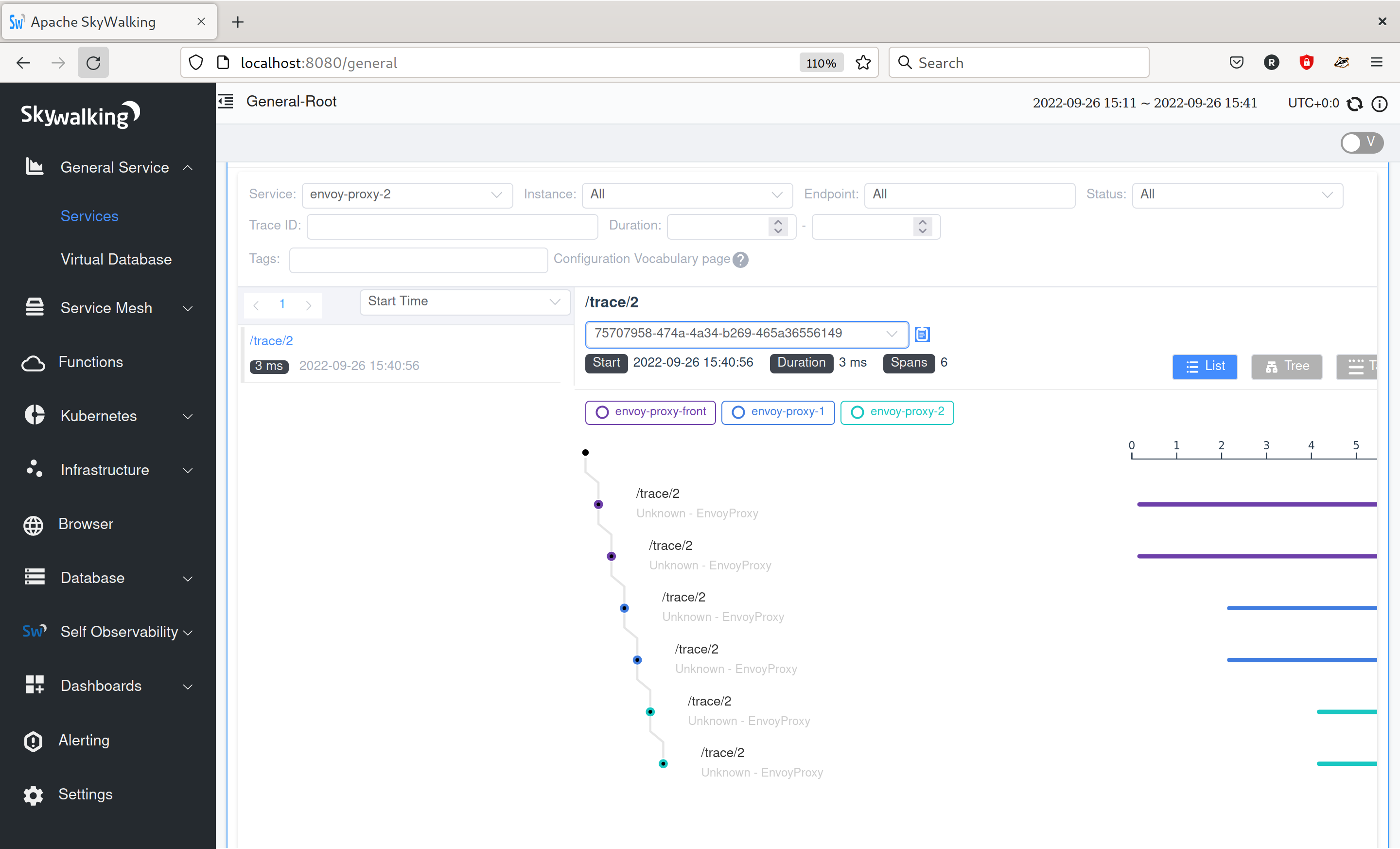

You can also view tracing information for the requests that you made:
